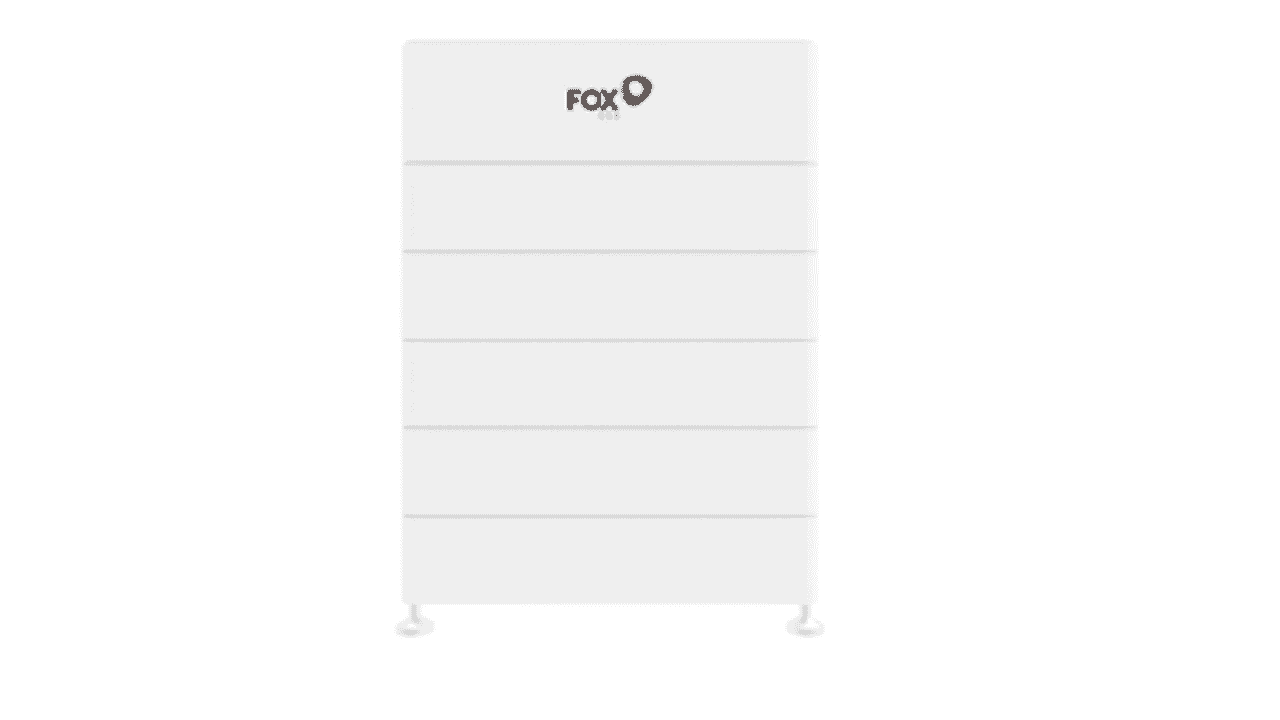

Fox Energy Cube 4.1kWh HV Battery Stack – 24.18kWh

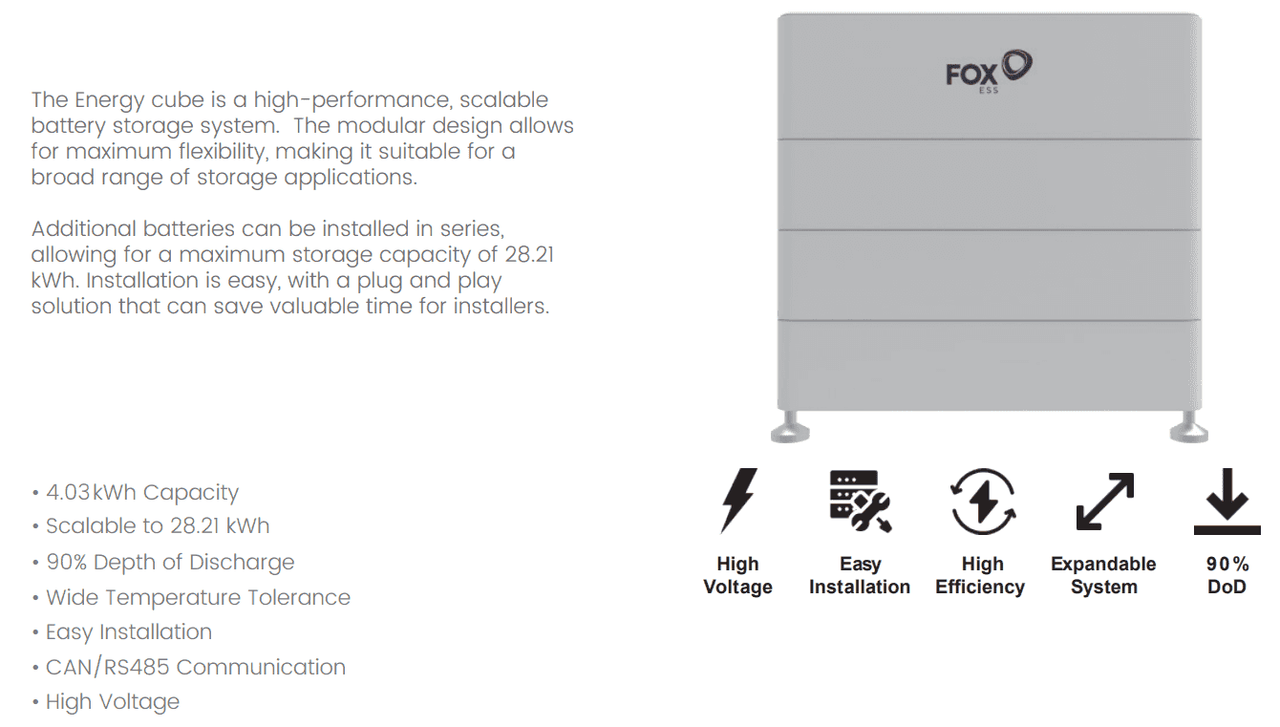

Product Overview

This Fox Energy Cube stack is designed for high-voltage residential or commercial energy storage applications. The modular design allows for flexible installation and future expansion.

Bundle Includes

• 1 x FE-HV-ECM-4100 Fox Energy Cube 4.03kWh HV Battery (Master)

• 5 x FE-HV-ECS-4100 Fox Energy Cube 4.03kWh HV Battery (Slave)

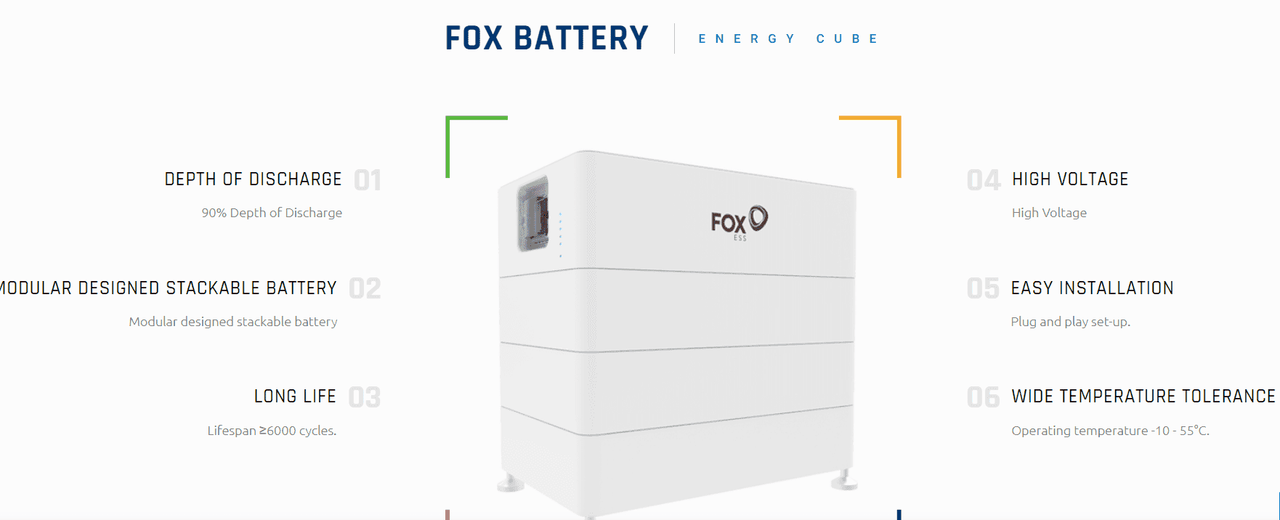

Key Features

• Total Capacity: 24.18kWh (stack of 6 modules including Master)

• ECM4100 Module Capacity: 4.03kWh

• Scalable up to 28.21kWh

• Depth of Discharge: 90%

• Wide temperature tolerance for reliable operation

• Easy installation with plug-and-play modules

• CAN/RS485 communication for integration with inverter systems

• High-voltage design for efficient energy storage

Expansion Notes

• Quick & easy installation allows additional ECM4100 modules to be added after initial setup

• Maximum of 7 modules in series per stack (1 Master + 6 Slaves)

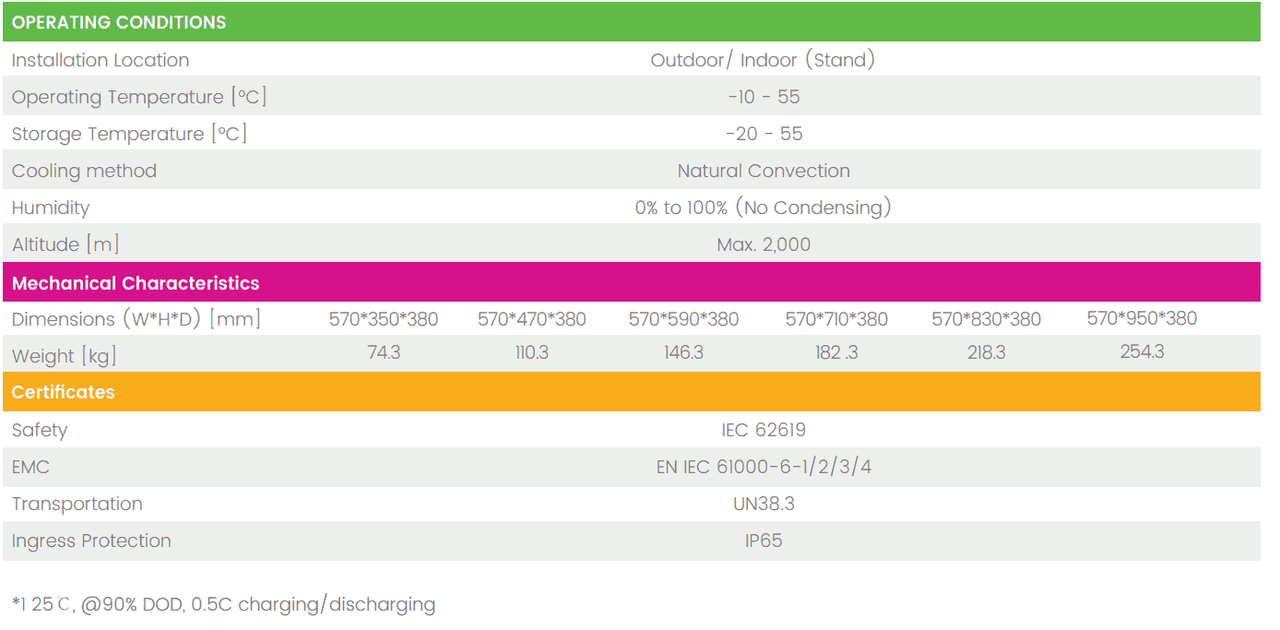

Specifications

• Weight: 74.3kg

• Dimensions (W x H x D): 570mm x 350mm x 380mm
