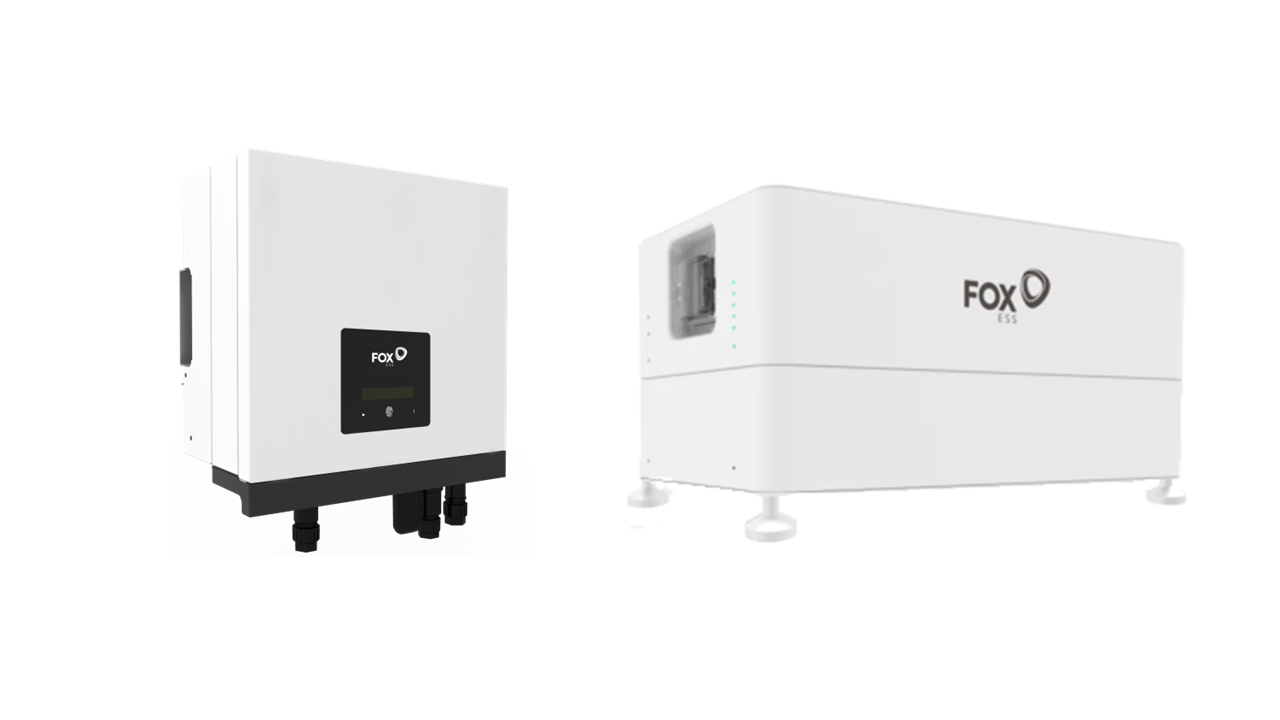

Fox ESS 5.0kW Hybrid Inverter with ECS4800 Battery stack of 2 (9.32kWh) £3,545 +vat

£4,254.00 incl. VAT

Fox ESS 5.0kW Hybrid Inverter with ECS4800 Battery stack of 2 (9.32kWh) £3,545 +vat

£4,254.00 incl. VAT
Product description

Fox ESS High Voltage complete kit: Cube HV ECM2900 5.76kWh  & Fox AC 5.0kW charger

 2: FE-H1-5.0-ECS4800-2-SL

Complete kit includes:

1 x FE-HV-ECM-4800
1 x FE-HV-ECS-4800

1 x FE-H1-5.0

Fox ECS EC4800-2H, 4.74kWh HV Battery (Master) 1x Master 1x SlaveECS is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 33.24 kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.

  • 4.74kWh Capacity
  • Scalable to 33.24kWh
  • 90% Depth of Discharge
  • Wide Temperature Tolerence
  • Easy Installation
  • CAN/RS485 Communication
  • High Voltage

Weight: 41 kg
Battery Type: Lithium Ion
Nominal Energy: 4660 Wh
Depth of discharge: 90.00 %
Voltage: V
Continuous Discharge Rate (Normal Use): 2330 W
Maximum Discharge Rate (5 Minutes): 4660 W
Surge Discharge Rate (15 Seconds): 5785 W
Maximum Charge Rate (5 Minutes): 4660 W



Charger - Fox AC 5.0kW


The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also available via your smartphone or web portal.


Uses high voltage batteries FE-HV2600 V2

IP65 rated - suitable for outdoor installations

Remote monitoring via web portal or smartphone

Easy to expand battery capacity


Dual MPPT - ensure optimal solar production

High round-trip efficiency of 97% BMS unit required 2 x HV2600 batteries minimum

CT Clamps and meter are included in the box
