Fox ECS HV ECM4800-2H V2, 28.8kWh 1x Master 5x Slave £8,338 +VAT

£10,005.95 incl. VAT

Fox ECS HV ECM4800-2H V2, 28.8kWh 1x Master 5x Slave £8,338 +VAT

£10,005.95 incl. VAT
Contact Us
Product description

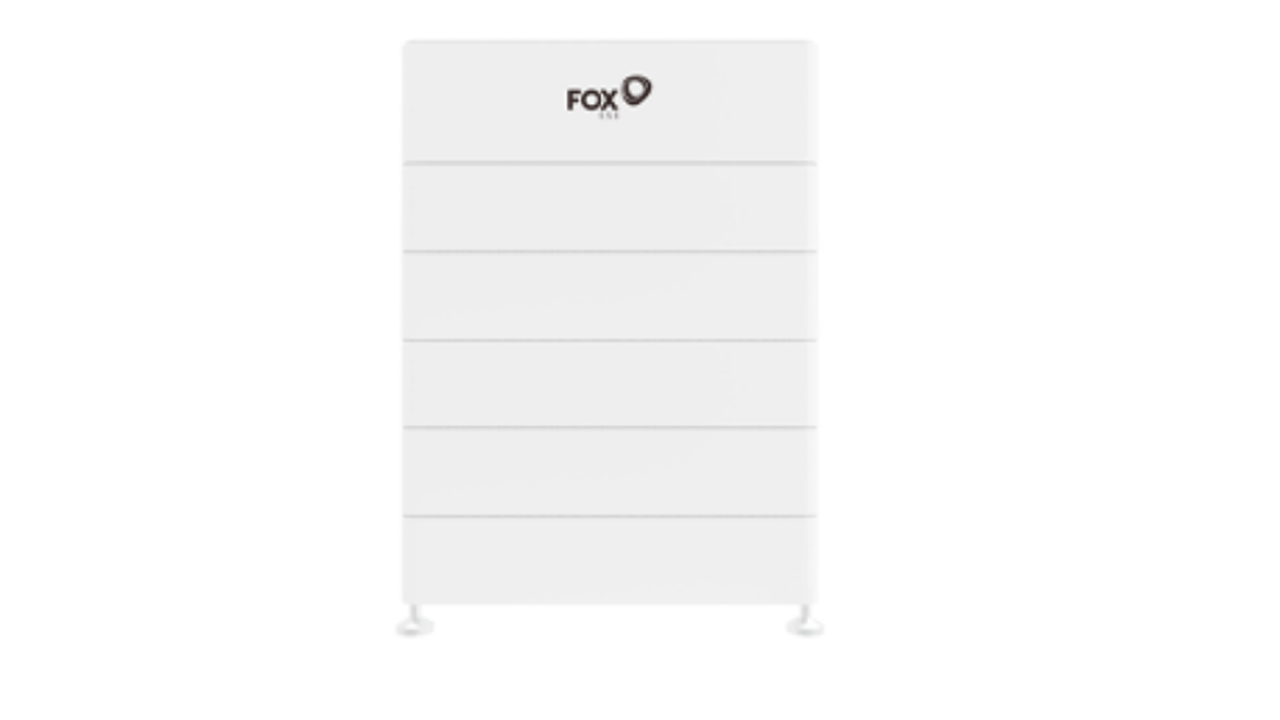

Fox Energy Cube HV ECM4100, 28.21kWh 1x Master 5x Slave

#1: FE-HV-EC-6-4.8-28.8

Please view our battery storage information page for sizing and selecting the right battery storage system for you.

Pdf free icon Fox Cube EC4800 Data Sheet

Pdf free icon Fox Cube EC4800 Manual

Pdf free icon Fox Cube EC4800 Warranty

*Collections are not permitted due to health & safety regulations*

Suitable for charging from the grid such as Economy 7 & Octopus Go. For detailed explanation of how to maximise Economy 7 essential information to work out which battery storage options is best for you please visit - Understaning Economy 7

Compatible with Fox HV chargers only available on our Fox HV main page

This product is made up of the following items:
1 x FE-HV-ECM-4800 Fox ECS EC4800-2H, 4.74kWh HV Battery (Master)
5 x FE-HV-ECS-4800 Fox ECS EC4800-2H, 4.74kWh HV Battery (Slave)

ECS is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 33.24kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.

  • 4.74kWh Capacity
  • Scalable to 33.2kWh
  • 90% Depth of Discharge
  • Wide Temperature Tolerence
  • Easy Installation
  • CAN/RS485 Communication
  • High Voltage

The quick & easy install feature allows for more ECM4800-2H battery modules to be added post installation.

This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves)

Weight: 246 kg
Battery Type: Lithium Ion
Nominal Energy: 27960 Wh
Depth of discharge: 90.00 %
Voltage: 268 V
Continuous Discharge Rate (Normal Use): 6720 W
Maximum Discharge Rate (5 Minutes): 13440 W
Surge Discharge Rate (15 Seconds): 17472 W
Maximum Charge Rate (5 Minutes): 13440 W
