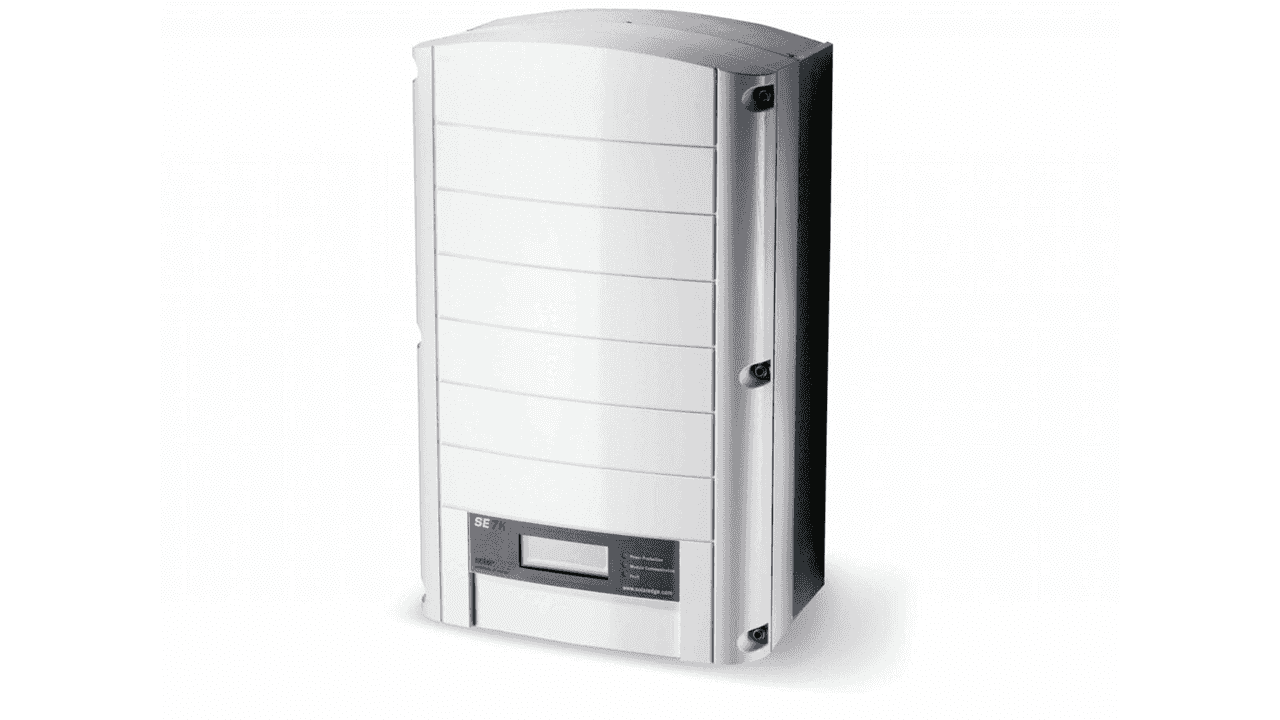

SolarEdge 12,500W Home Wave Inverter - Three Phase Inverter, Energy Net ready
#1: SE-12500-3PH-NET
#4: SE12.5K-RW0T0BNN4
SolarEdge 12,500W Data Sheet
SolarEdge 12,500W Manual
SolarEdge 12,500W Warranty
SolarEdge 12,500W G99 Certificate
*Collections are not permitted due to health & safety regulations*
Rating: 12,500W
Phases: 3
Solar Edge 12500 3phase inverter with Set APP function (no display)
The SolarEdge inverters combine a sophisticated, digital control technology and a one stage, efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability.
The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage, regardless of the number of modules in a string or environmental conditions.
UK only: This inverter has been tested and certified according to G98 or G99, but only with the most recent Firmware version. Please update the inverter firmware during SetAPP phone app commissioning process as per the per Installation Manual.
This inverter has no trackers and requires power optimisers to function..
Weight: 16.5 kg
Rated Power: 12,500 W
Min PPT Voltage: 184 V
Max PPT Voltage: 265 V
DC Startup Voltage: 0 V
DC Shutdown Voltage: 480 V
Max Input Voltage: 480 V
Max DC Power: 20,000 W
Max AC Power (5 Minutes): 10,000 W
Surge AC Power (1 Second): 10,001 W
Max DC Current: 25.5 A
Max DC Inputs: 3
Has DC Fuses: 0
Connector: MC4
Included Connectors: 3
Euro Efficiency: 99 %
Transformer: None
MPPT Quantity : 0
Has Integrated DC Switch: Yes
Warranty: 12 years
