SolarEdge Optimisers (11)

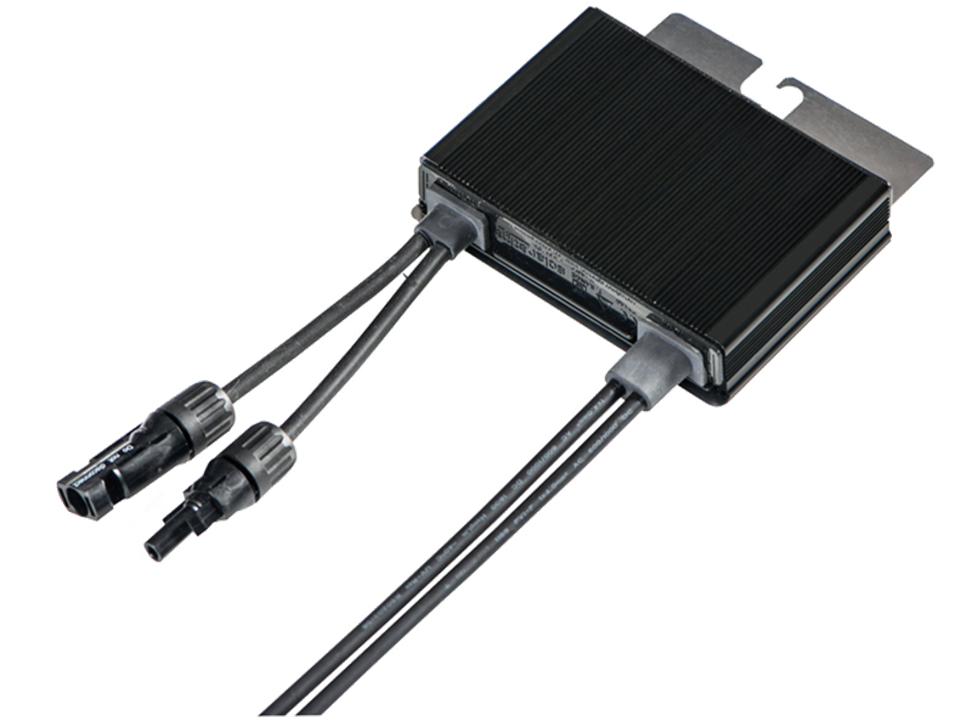

SolarEdge P801 Optimiser 800W MC4 2x72 Cell 2.2m 2: P801-MC4#3: 3479 SE P801 Optimiser Data Sheet SE P801 Optimiser Installation Manual SE P801 Optimiser Warranty SE P801 Optimiser Certification Minimum order: 6 Units P801-4RMLMRY For 72 cells, 2 in series (landscape), 125V, input 0.9m, output 2.2m The most cost effective solution for commercial and large field installations Specifically designed to work with SolarEdge inverters Up to 25% more energy Superior efficiency (99.5%) Balance of System cost reduction; 50% less cables, fuses and combiner boxes, over 2x longer strings lengths possible. Fast installation with a single bolt Advanced maintenance with module-level monitoring Module-level voltage shutdown for installer and firefighter safety Use with two PV modules connected in series or in parallel This optimiser is ideal for commercial installations allowing the connection of two panels to one power optimiser. This optimiser is compatible with large SolarEdge inverters (SE-16000 and up) only. Specs Weight: 1.05 kg Min PPT Voltage: 13 V Max PPT Voltage: 105 V DC Startup Voltage: 13 V DC Shutdown Voltage: 13 V Max Input Voltage: 125 V Max DC Power: 800 W Max AC Power (5 Minutes): 0 W Surge AC Power (1 Second): 0 W Max DC Current: 11.75 A Max DC Inputs: 2 Has DC Fuses: 0 Connector: MC4 Included Connectors: 2 Euro Efficiency: 98.6 % Transformer: N/A MPPT Quantity : 1 Has Integrated DC Switch: No Warranty: 25 years

P850 Optimiser 850W MC4 2x High Power/Bi-facial 2.2m with 1.3m input length #2: P850-2.2-LI-1.3-MC4 Inverters - Inverters - Optimisers #3: 3481#4182 #4: S850-1GM4MRY SE P850 Optimiser Data Sheet SE P850 Optimiser Installation Manual SE P850 Optimiser Warranty SE P850 Optimiser Certification Minimum order: 4 Units P850-5RM4MBY The SolarEdge power optimizer is a DC/DC converter which is connected by installers to each PV module (or pair of modules) or embedded by module manufacturers, replacing the traditional solar junction box. The SolarEdge power optimizers increase energy output from PV systems by constantly tracking the maximum power point (MPPT) of each module individually. Furthermore, the power optimizers monitor the performance of each module and communicate performance data to the SolarEdge monitoring platform for enhanced, cost-effective module-level maintenance. Each power optimizer is equipped with the unique SafeDCâ„¢ feature which is designed to automatically shut down modules' DC voltage whenever the inverter or grid power is shut down. This optimiser is ideal for commercial installations allowing the connection of two High Power or Bi-facial panels in Series to one power optimiser. It supports up to 850W and has a bent bracket (similar to the new P505 optimiser) to accommodate clearance of larger enclosures. This optimiser is compatible with larger SolarEdge 3 phase inverters (SE-16000 and up) only. Weight: 1.06 kgMin PPT Voltage: 13 VMax PPT Voltage: 125 VDC Startup Voltage: 13 VDC Shutdown Voltage: 125 VMax Input Voltage: 125 VMax DC Power: 850 WMax AC Power (5 Minutes): 0 WSurge AC Power (1 Second): 0 WMax DC Current: 14.1 AMax DC Inputs: 2Has DC Fuses: 0Connector: MC4Included Connectors: 2Euro Efficiency: 98.6 %Transformer: N/AMPPT Quantity : 1Has Integrated DC Switch: NoWarranty: 25 years Input length: 1.3mOutput Length: 2.2m

SolarEdge S440 Power Optimiser #2: S440-MC4 SE S440 Optimiser Datasheet SE S440 Optimiser Ground Mounted Manual SE S440 Optimiser Certification SE S440 Optimiser Warranty Minimum order: 4 Units Part No: S440-MC4 Inverters - Optimisers Specifically designed to work with SolarEdge residential inverters Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading Faster installations with simplified cable management and easy assembly using a single bolt Detects abnormal PV connector behavior, preventing potential safety issues Module-level voltage shutdown for installer and firefighter safety Flexible system design for maximum space utilization Compatible with bifacial PV modules Superior efficiency (99.5%)

S500 Solar Edge Power Optimiser #2: S500-MC4#3: 4152 #4: S500-1GM4MRM S500 Datasheet S500 Installation guide S500 Warranty Minimum order: 4 Units The S-series Power Optimizers are smarter and safer with patented SolarEdge technology delivering more safety features and, with new improved cable management, the S-series speeds up the stringing of the Power Optimizers. Here is a brief summary of the main benefits: Faster installation with simplified cable management Integrated sensors for outstanding system safety Automatic pinpointed and actionable alerts in the monitoring system in case of abnormal system behaviour (requires inverter firmware update expected in Q4/2021) Higher Power Optimizer specification to support next generation PV modules Compliant with the latest EU standards Reduced number of product variants for easier ordering and logistics Specifications: Max input Voc: 60V Max current Isc: 15A Minimum number of optimisers: 8 Maximum number of optimisers: 25

SolarEdge S1000 Commercial Optimiser - Extended #3: 5124 SE S1000 Optimiser Datasheet Minimum order: 4 Units This optimiser is ideal for commercial installations allowing the connection of two high powered or bi-facial panels in series to one power optimiser.Optimisers allow for uneven strings, longer strings, mix of panel types and orientations on the same string as well as reducing the impact of partial shading on the array.This extended option increases length of the cabling on the optimiser from 2.7m to 4.7m meaning that these optimisers can be used in both portrait and landscape orientations. Specifications: Rated Input DC Power: 1000W Max input Voc: 125V Max Isc current: 15A Minimum number of optimisers: 14 Maximum number of optimisers: 30 25 Year warranty SafeDC protection Module-level monitoring Output Cable length: 4.7m Extended input: adds 2m

S1000 Power Optimiser Long Input (1.3m) #3: S1000-LI-MC4 Inverters - Optimisers SE S1000 Optimiser Datasheet Minimum order: 4 Units S1000 Power Optimizer Long Input (1.3m) Specifically designed to work with SolarEdge Comercial inverters Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading Faster installations with simplified cable management and easy assembly using a single bolt Detects abnormal PV connector behavior, preventing potential safety issues Module-level voltage shutdown for installer and firefighter safety Flexible system design for maximum space utilization Compatible with bifacial PV modules Superior efficiency (99.5%)   Weight: 1.09 kgMin PPT Voltage: 12 VMax PPT Voltage: 125 VDC Startup Voltage: 12 VDC Shutdown Voltage: 125 VMax Input Voltage: 125 VMax DC Power: 1,000 WMax DC Current: 15 AMax DC Inputs: 2Has DC Fuses: 0Connector: MC4Included Connectors: 12MPPT Quantity : 1Has Integrated DC Switch: No

S1000 Power Optimiser Long Input (1.3m) #3: S1000-MC4 Inverters - Optimisers SE S1000 Optimiser Datasheet Minimum order: 4 Units   S1000 Power Optimizer Specifically designed to work with SolarEdge Comercial inverters Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading Faster installations with simplified cable management and easy assembly using a single bolt Detects abnormal PV connector behavior, preventing potential safety issues Module-level voltage shutdown for installer and firefighter safety Flexible system design for maximum space utilization Compatible with bifacial PV modules Superior efficiency (99.5%)   Weight: 1.09 kgMin PPT Voltage: 12 VMax PPT Voltage: 125 VDC Startup Voltage: 12 VDC Shutdown Voltage: 125 VMax Input Voltage: 125 VMax DC Power: 1,000 WMax DC Current: 15 AMax DC Inputs: 2Has DC Fuses: 0Connector: MC4Included Connectors: 2MPPT Quantity : 1Has Integrated DC Switch: No

SolarEdge S1200 Power Optimiser #2: S1200-MC4 Inverters - Optimisers SE S1200 Optimiser Datasheet Minimum order: 4 Units Part No: S440-MC4 Inverters - Optimisers Specifically designed to work with SolarEdge Comercial inverters Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading Faster installations with simplified cable management and easy assembly using a single bolt Detects abnormal PV connector behavior, preventing potential safety issues Module-level voltage shutdown for installer and firefighter safety Flexible system design for maximum space utilization Compatible with bifacial PV modules Superior efficiency (99.5%) Note: The S1200 has a higher operating current. When pairing the S1200 with an inverter that has built-in 25A fuses, you must replace the fuses with 30A fuses before commissioning. A fuse replacement kit is available (Part number FLD-DCD-SEL1-FUSE). The applicable inverter Part Numbers are as follows: SExxK-xxxxIxxCx, SExxK-xxxxIxxDx, SExxK-TWxxIxxLx, SExxK-xxxxIxxZx. Weight: 1.09 kgMin PPT Voltage: 12 VMax PPT Voltage: 125 VDC Startup Voltage: 12 VDC Shutdown Voltage: 125 VMax Input Voltage: 125 VMax DC Power: 1,200 WMax DC Current: 15 AMax DC Inputs: 2Has DC Fuses: 0Connector: MC4Included Connectors: 12MPPT Quantity : 1Has Integrated DC Switch: NoEuro Efficiency: 98.6 %Transformer: N/AMPPT Quantity : 1Has Integrated DC Switch: No

SolarEdge S1400-MC4 Inverters - Optimisers #2: S1400-MC4 #4: S1400-1GMZMBWD SE S1400 Optimiser Datasheet SolarEdge’s most powerful and compact Power Optimizer specifically designed for commercial and large field installations. Minimum order: 4 Units Features: High efficiency (99.5%) with module-level MPPT, for maximized system energy production and revenue, and fast project ROI Supports up to 700W and 20A high power and current modules, including bifacial and G12 modules Maximum Protection with Built-In Safety Designed to automatically reduce high DC voltage to touch-safe levels, upon grid/inverter shutdown, with SafeDC™ Includes SolarEdge Sense Connect, for connector-level monitoring during production to detect overheating due to installation issues or wear and tear Lower BoS Costs with Flexible Design More power with up to 30.4 kW per string for optimal usage of the installation area, enabling up to 2x longer and fewer strings, and 50% fewer cables, fuses, and combiner boxes Compact size and slimmer profile for simple cost-effective installations, especially in challenging spaces Connects to two PV modules in series Module-level system monitoring enabling pinpointed fault detection Remote, time-saving troubleshooting for fewer truck rolls and less time on-site 25 year warranty Note: S1400 Power Optimizers are rated up to 24A for output current. Therefore, they are NOT suitable to be used with SolarEdge Inverter models that have integrated 25A or 30A DC-fuses. To replace these fuses you will require part number SE-FLD-3PH-NEUTRAL-LINK to allow the S1400 to be compatible with the Manager inverters. Specs: Weight: 1.09 kgMin PPT Voltage: 12 VMax PPT Voltage: 125 VDC Startup Voltage: 12 VDC Shutdown Voltage: 125 VMax Input Voltage: 125 VMax DC Power: 1,400 WMax DC Current: 20 AMax DC Inputs: 2Has DC Fuses: 0Connector: MC4Included Connectors: 12MPPT Quantity : 1Has Integrated DC Switch: No

Solar Edge S500B Power Optimiser (33mm Depth) #2: S500-B2-MC4 S500B2 Datasheet S500B2 Product Update S500B2 Installation guide S500B2 Warranty Minimum order: 4 Units The S-series Power Optimizers are smarter and safer with patented SolarEdge technology delivering more safety features and, with new improved cable management, the S-series speeds up the stringing of the Power Optimizers. Specifically designed to work with SolarEdge residential inverters Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading Faster installations with simplified cable management and easy assembly using a single bolt Detects abnormal PV connector behavior, preventing potential safety issues Module-level voltage shutdown for installer and firefighter safety Flexible system design for maximum space utilization Compatible with bifacial PV modules Superior efficiency (99.5%) Specs Weight: 0.65 kgMin PPT Voltage: 12 VMax PPT Voltage: 105 VDC Startup Voltage: 8 VDC Shutdown Voltage: 8 VMax Input Voltage: 80 VMax DC Power: 500 WMax AC Power (5 Minutes): 0 WSurge AC Power (1 Second): 0 WMax DC Current: 15 AMax DC Inputs: 1Has DC Fuses: 0Connector: MC4Included Connectors: 1Euro Efficiency: 0 %Transformer: N/AMPPT Quantity : 1Has Integrated DC Switch: NoWarranty: 25 years

Solar Edge S650B Power Optimizer #2:S650-B-MC4 S650B Datasheet S650B Product Update S650B Installation guide S650B Warranty Minimum order: 4 Units The S-series Power Optimizers are smarter and safer with patented SolarEdge technology delivering more safety features and, with new improved cable management, the S-series speeds up the stringing of the Power Optimizers. Specifically designed to work with SolarEdge residential inverters Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading Faster installations with simplified cable management and easy assembly using a single bolt Detects abnormal PV connector behavior, preventing potential safety issues Module-level voltage shutdown for installer and firefighter safety Flexible system design for maximum space utilization Compatible with bifacial PV modules Superior efficiency (99.5%) Specs Weight: 0.79 kgMin PPT Voltage: 0 VMax PPT Voltage: 105 VDC Startup Voltage: 8 VDC Shutdown Voltage: 8 VMax Input Voltage: 0 VMax DC Power: 650 WMax AC Power (5 Minutes): 0 WSurge AC Power (1 Second): 0 WMax DC Current: 15 AMax DC Inputs: 1Has DC Fuses: 0Connector: MC4Included Connectors: 0Euro Efficiency: 0 %Transformer: N/AMPPT Quantity : 1Has Integrated DC Switch: NoWarranty: 25 years
