SolarEdge P750 Optimiser MC4 High Current for Bi-Facial £60 + vat

* The minimum order quantity for this product is 4 units.
£72.00 incl. VAT

SolarEdge P750 Optimiser MC4 High Current for Bi-Facial £60 + vat

* The minimum order quantity for this product is 4 units.
£72.00 incl. VAT
Product description

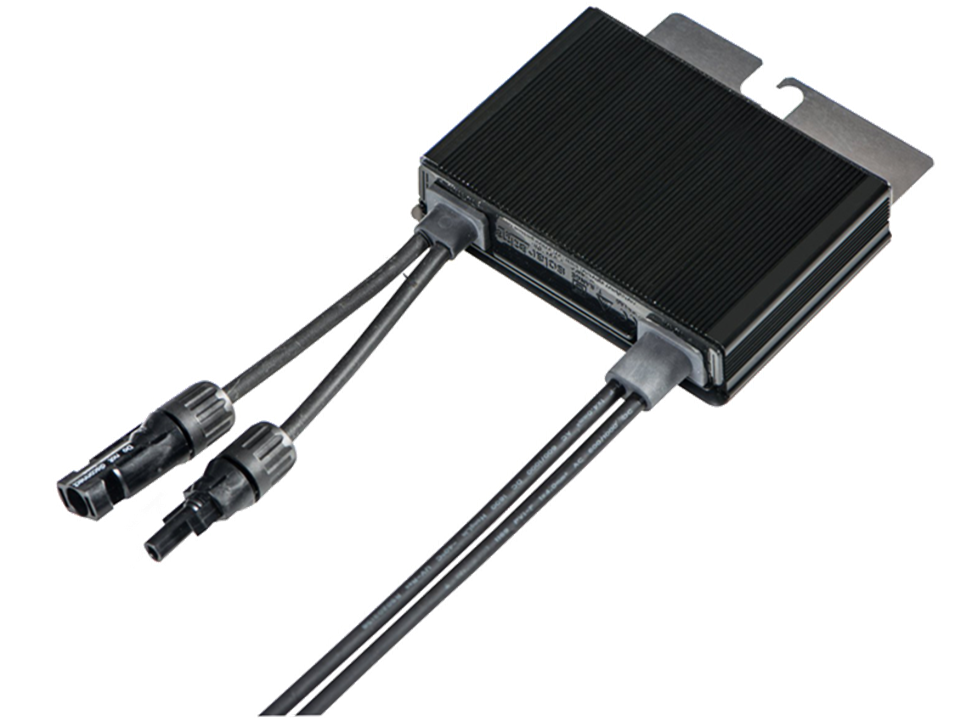

SolarEdge P750 Optimiser MC4 High Current for Bi-Facial

#1: P750-MC4 - Inverters - Optimisers

Pdf free icon SE P750 Optimiser Data Sheet

Pdf free icon SE P750 Optimiser Installation Manual

Pdf free icon SE P750 Optimiser Warranty

Pdf free icon SE P750 Optimiser Certification

Minimum order: 4 Units

Automatic volume discount for 40+: £4/unit

Automatic volume discount for 100++: £6/unit

Automatic volume discount for 200+: £8/unit

P750-MC4



The P750-MC4 not only allows shorter string design with SolarEdge inverters, to a minimum of 6 modules per string but its ideally suited to larger, higher voltage and higher current modules such as 96 cells (high voltage) or bi-facial (high current). This increased flexibility will allow smaller installations to be optimised for maximum energy output.

SolarEdge power optimisers maximise energy from each panel through constant tracking of Maximum Power Point per panel. Optimal efficiency is achieved by automatically maintaining a fixed string voltage and performance can be monitored via the SolarEdge monitoring portal. Each power optimser is equipped with the unique SafeDC feature which automatically shuts down module voltage whenever inverter or grid power are shut down.



  • Specifically designed to work with SolarEdge inverters
  • Up to 25% more energy
  • Superior efficiency (99.5%)
  • Balance of System cost reduction; 50% less cables,fuses and combinerboxes, over 2x longer string lengths possible
  • Fast installation with a single bolt
  • Advanced maintenance with module-level monitoring
  • Support high input current, bifacial and high power modules
Weight: 1.34 kg
Min PPT Voltage: 13 V
Max PPT Voltage: 60 V
DC Startup Voltage: 13 V
DC Shutdown Voltage: 13 V
Max Input Voltage: 60 V
Max DC Power: 750 W
Max AC Power (5 Minutes): 0 W
Surge AC Power (1 Second): 0 W
Max DC Current: 20 A
Max DC Inputs: 1
Has DC Fuses: 0
Connector: MC4
Included Connectors: 1
Euro Efficiency: 98.6 %
Transformer: HF
MPPT Quantity : 1
Has Integrated DC Switch: No
Warranty: 25 years
